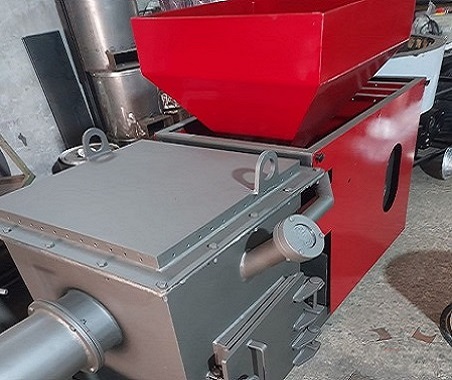

Industrial Pellet Burner

Constituents of Pellet Burner System

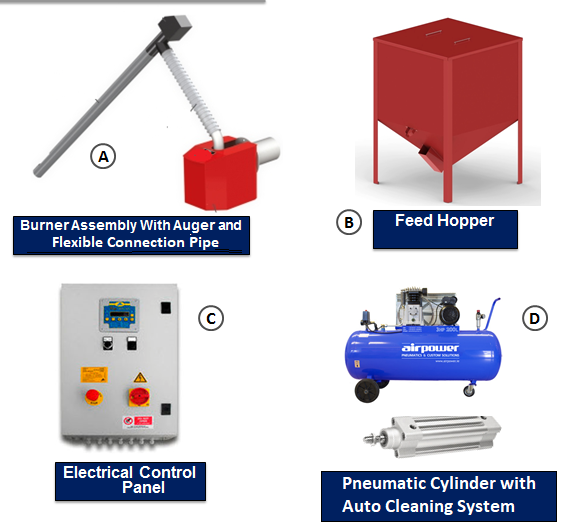

Constituents of Pellet Burner System

  • A - Burner Assembly with Feed Auger and Flexible Connection Pipe
  • B - Feed Hopper
  • C - Electrical Control Panel
  • D - Pneumatic cylinder with Air Compressor (For Automatic removal of Ash).
  • Feature of the Pellet Burner System (Euroline Series)

    India’s only Pellet Burner with Automatic Ash Cleaning system till date :

    India’s only Pellet Burner work continuously for days without stopping or cleaning requirements.

    India’s first Pellet Burner with Automatic Ignition system:

    Fast, clean and smokeless firing. No diesel or Kerosene required

    India’s Only Burner with Back Fire protection system

    Safety feature to prevent injury / accident with outward return of flame.

    High Grade Material and Components used

    SS Grades of 310 & 304 are used in burner assembly. Best in class components imported from Europe, Japan etc… are used.

    Best Ash handling Capabilities:

    It can handle widest range of wood Pellets (0-4% Ash content)

    Lowest Maintenance costs among Burners and Longest Life

    The design & components used allow for least breakdown situations.

    Lowest Fuel Consumption:

    The only European design Burner in India. At least, 10-15% less Fuel Consumption compared to other Pellet Burners available due to high efficiency of more than 90%.

    We have Burners of capacities varying from 1 lakh Kcal / hr. to 18 lakh Kcal / hr.

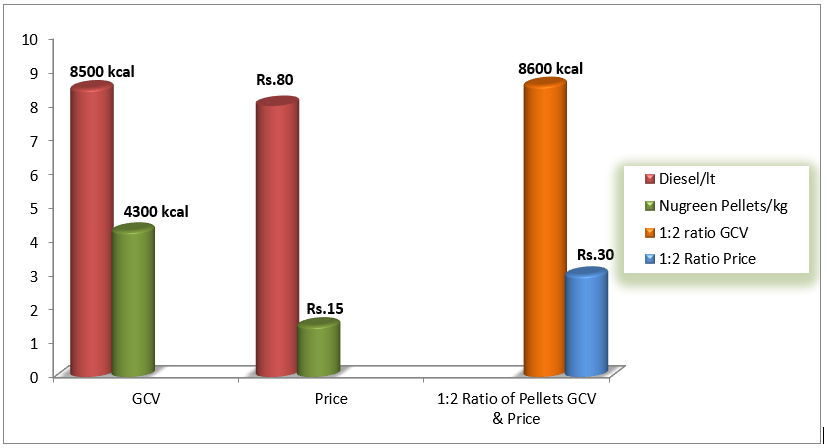

    Economics of using Pellets

    Diesel is 8500 kcal/liter of energy and Pellets about 4300kcal/kg so about 1:2 ratio. Energy equivalent price of Pellets is about R. 30/kg. So if cost of Pellets is about Rs.15/kg user is reducing cost by about 60%.

    We can set up a new Pellet Burner system, or we can retrofit in quick time and replace existing Diesel Burner system.
