BIG PELLETS AS BETTER ALTERNATIVE TO BRIQUETTES
12- 25 mm pellets for boilers.
Higher combustion efficiency.
Automation of boiler fuel feeding system possible Leads to saving of manpower costs.
Higher boiler efficiency (~40%).
Improves the boiler feed temperature and steam consistency
Ability to make out of multiple Agri-Residues without aid of binders

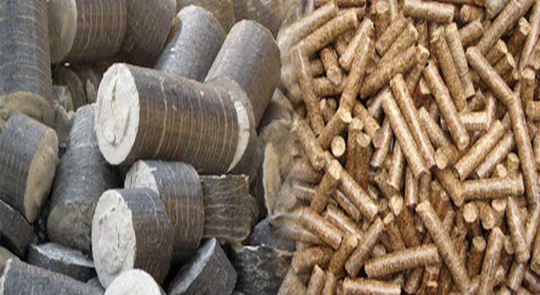

Briquettes V/S Pellets

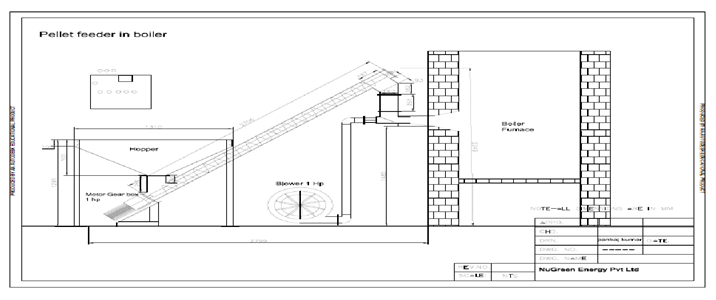

Illustrative: Diagram explaining the automatic feeding system of pellets.
In fluidized boiler 6-8 mm diameter pellets is possible with in house modification to Boiler mesh.
Automation system reduces dependency on labour for feeding purpose.
Pellets with diameter of 12-13mm can be fed without any change in boiler.
The furnace chamber size can be reduced by 40-50% with pellets. Greater efficiency achieved.
Pellets compared to briquettes are much better in all aspects, and to get even higher energy and better results, we can convert them into torrefied pellets. Below is the chart for better understanding.

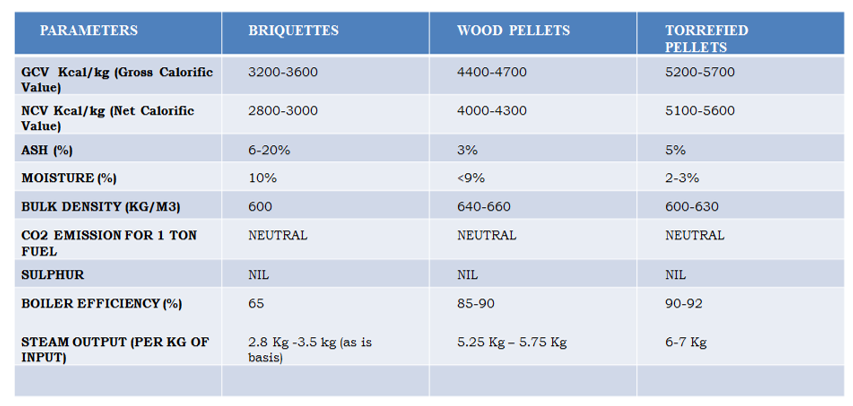

Fuel comparison
NCV combined with auto feed, low ash, high compression, boiler efficiency 50% more, the overall effect may allow twice the energy equivalence compared to briquette.
Efficiency of Torrefied Pellets when compared to Normal Wood Pellets is much better.
Lower transport cost, lower labor cost due to automation, lower maintenance and ash handling and disposal expenses.
Nugreen passes on 50% of savings/benefits to the user and thus prices the pellets more economically.
